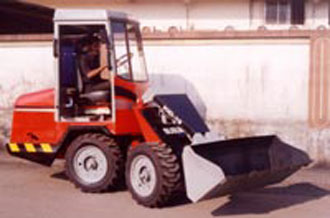

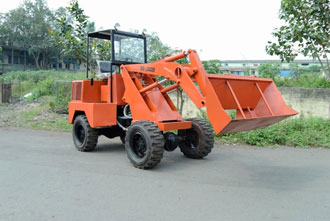

LOADER - ARTICULATED
-
Click here for Attachments for Loader Articulated -

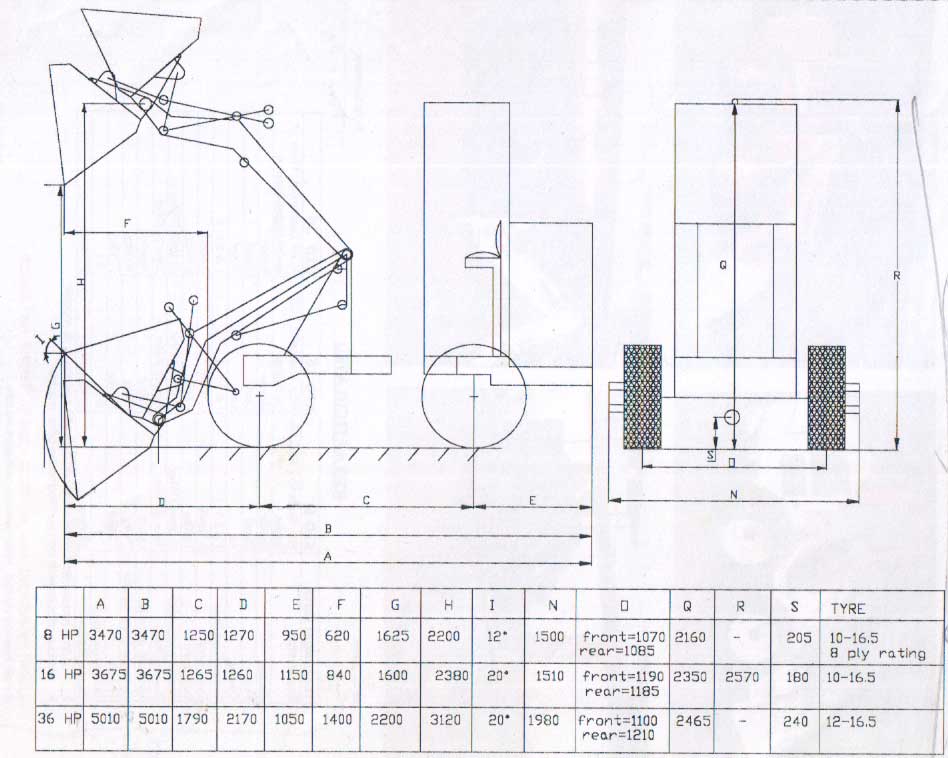

Technical Data KID 8 KID 16 KID 25 / 36 Engine output 8hp;Single
Cyl. Oil Engine16hp; Double
Cyl. Oil Engine25 HP/36 HP
Double Cyl, Simpson (Perkin)
Water-Cooled EngineStarting Handle Handle Battery Fuel Diesel Diesel Diesel Cooling Air Air Water Transmission Ratio 1 & 2.5:1 1 & 2.5:1 1 & 2.5:1 Drive Speed 0-9km/h 0-9km/h 0-9km/h Pulling Force 1000kg 1400kg 2300kg Auxiliary Hydraulics 21 1/min 175bar 31 1/min 175bar 41 1/min 200bar Steering Pump 71pm @ 70Bar 71pm @ 70Bar 71pm @ 70Bar Hydraulic Oil Cooler Option Option Standard Hydraulic lifting capacity 750kg 850kg 1000kg Weight 1200kg 1450kg 1700kg Volume (cu.mtr) 0.2 0.3 0.4 Turning Radius 2300mm 2970mm 2775mm
